Symptoms & Engine Signals

An oil leak from the area around the oil filter housing on your VW, Audi, Skoda, or Seat is a clear indicator that the engine oil cooler gasket has failed. You may notice fresh oil drips on the ground beneath the engine after the vehicle has been parked, oil residue on the lower surfaces of the engine block near the filter housing, or a burning oil smell as leaked oil contacts hot exhaust components. In some cases, the leak may be more subtle, manifesting as a gradual decrease in oil level between services without any obvious external drips, as the oil may be leaking onto hot surfaces and burning off before it can drip to the ground. On engines with integrated oil cooler assemblies, a failed gasket can also allow the internal mixing of oil and coolant, producing a milky, contaminated appearance in the coolant expansion tank and potentially causing the engine to overheat as the coolant’s heat transfer properties are compromised. The oil cooler gasket is subjected to the full operating pressure of the engine’s lubrication system, which means that once a leak path develops, oil can escape at a significant rate, potentially leading to low oil pressure warnings or engine damage if the leak is not addressed in a timely manner.

Why Your Car Might Be Struggling

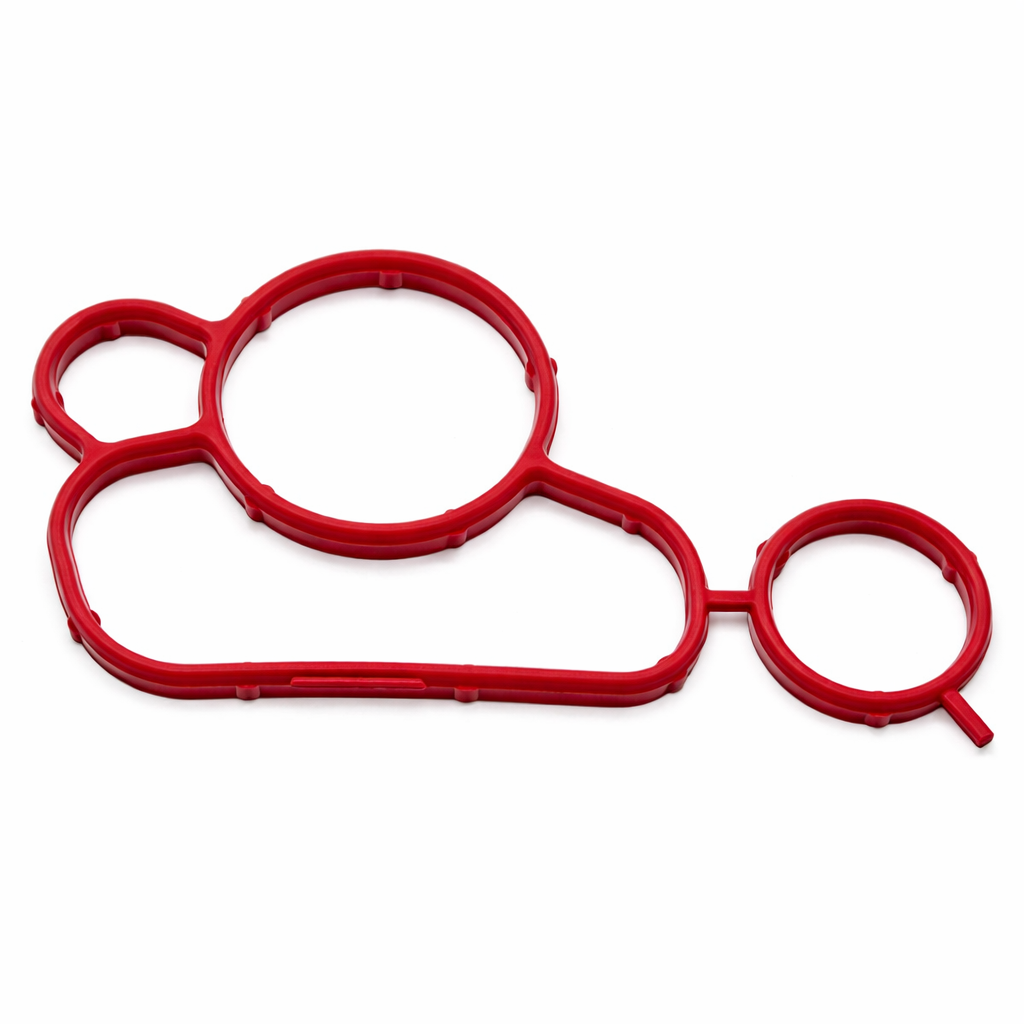

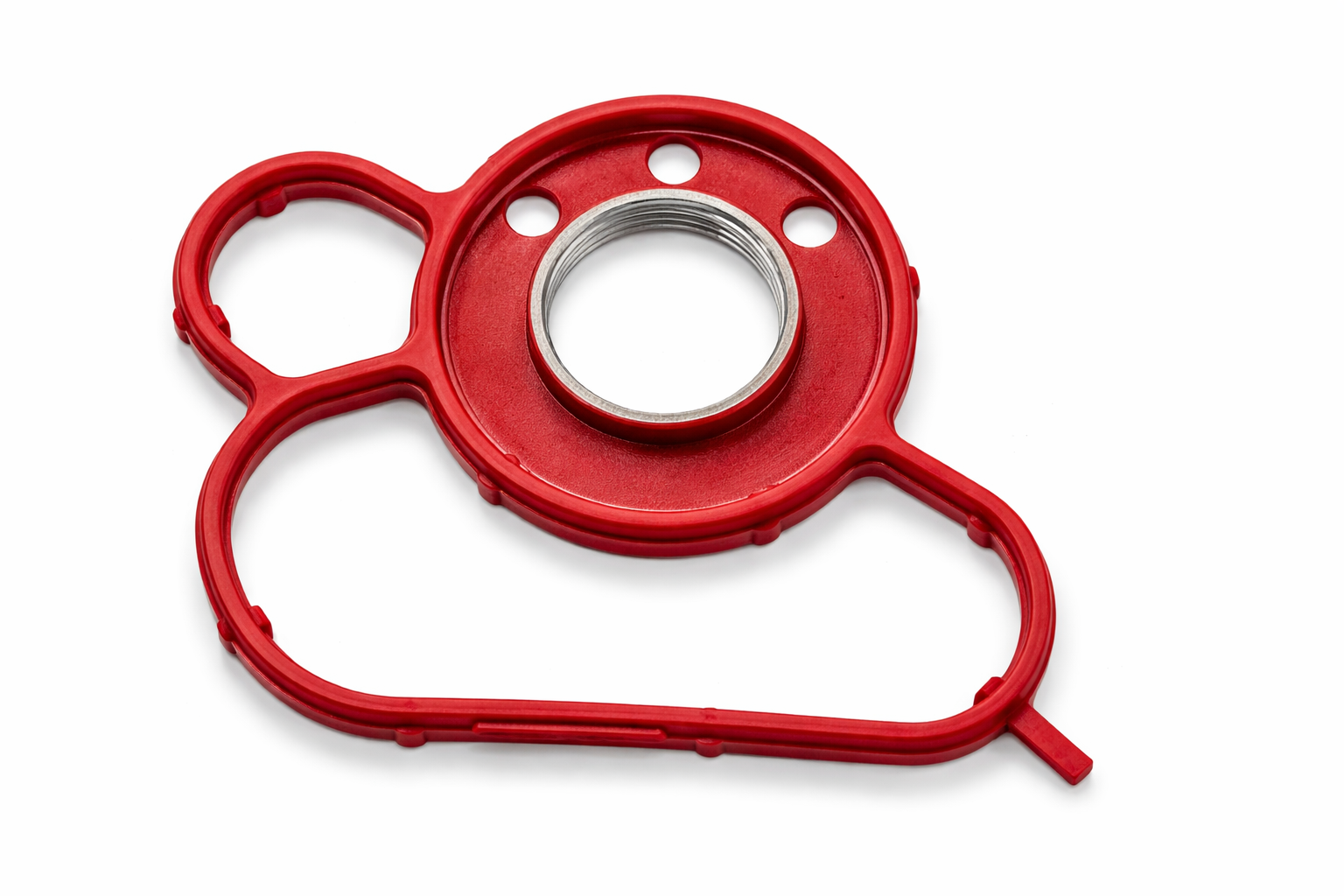

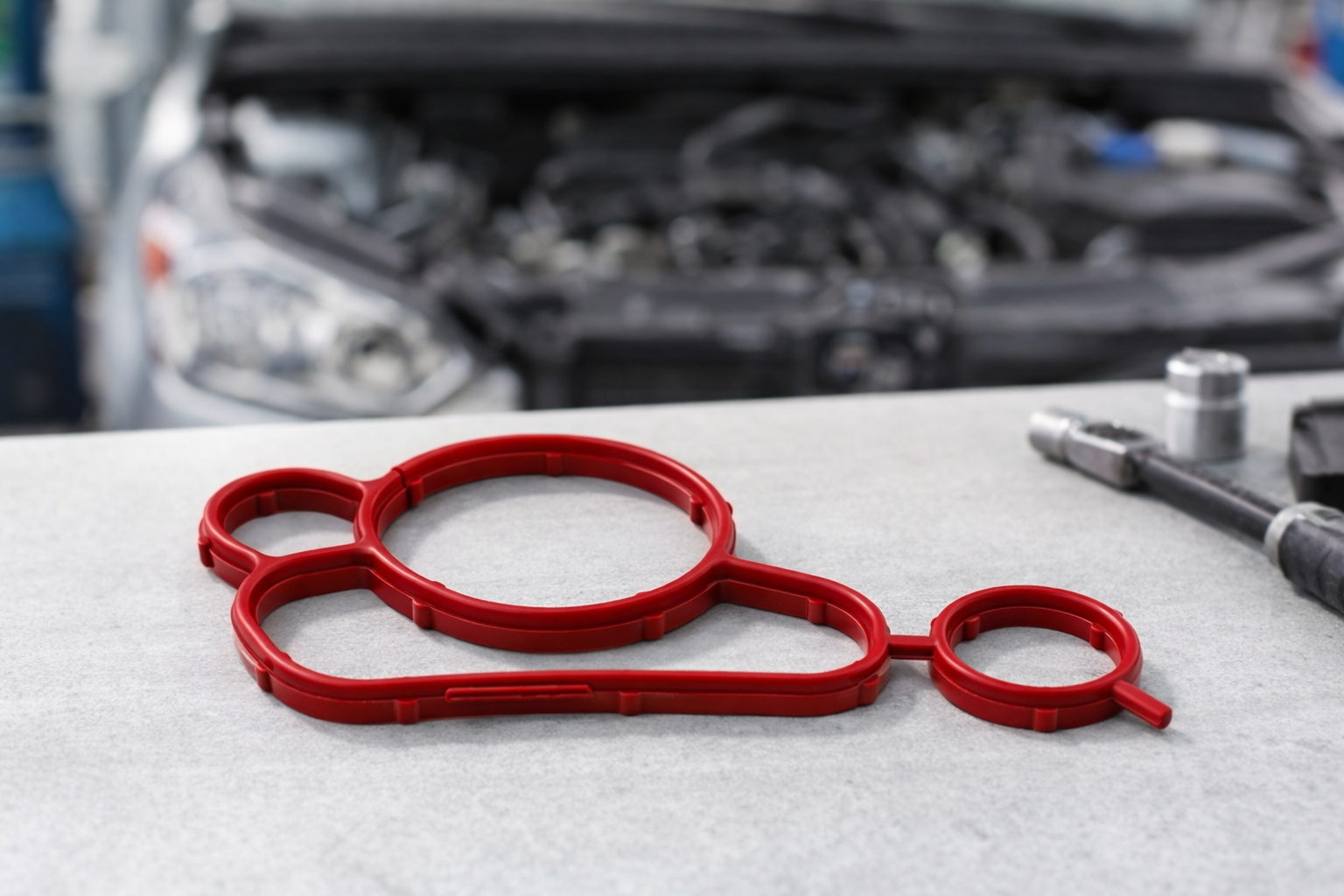

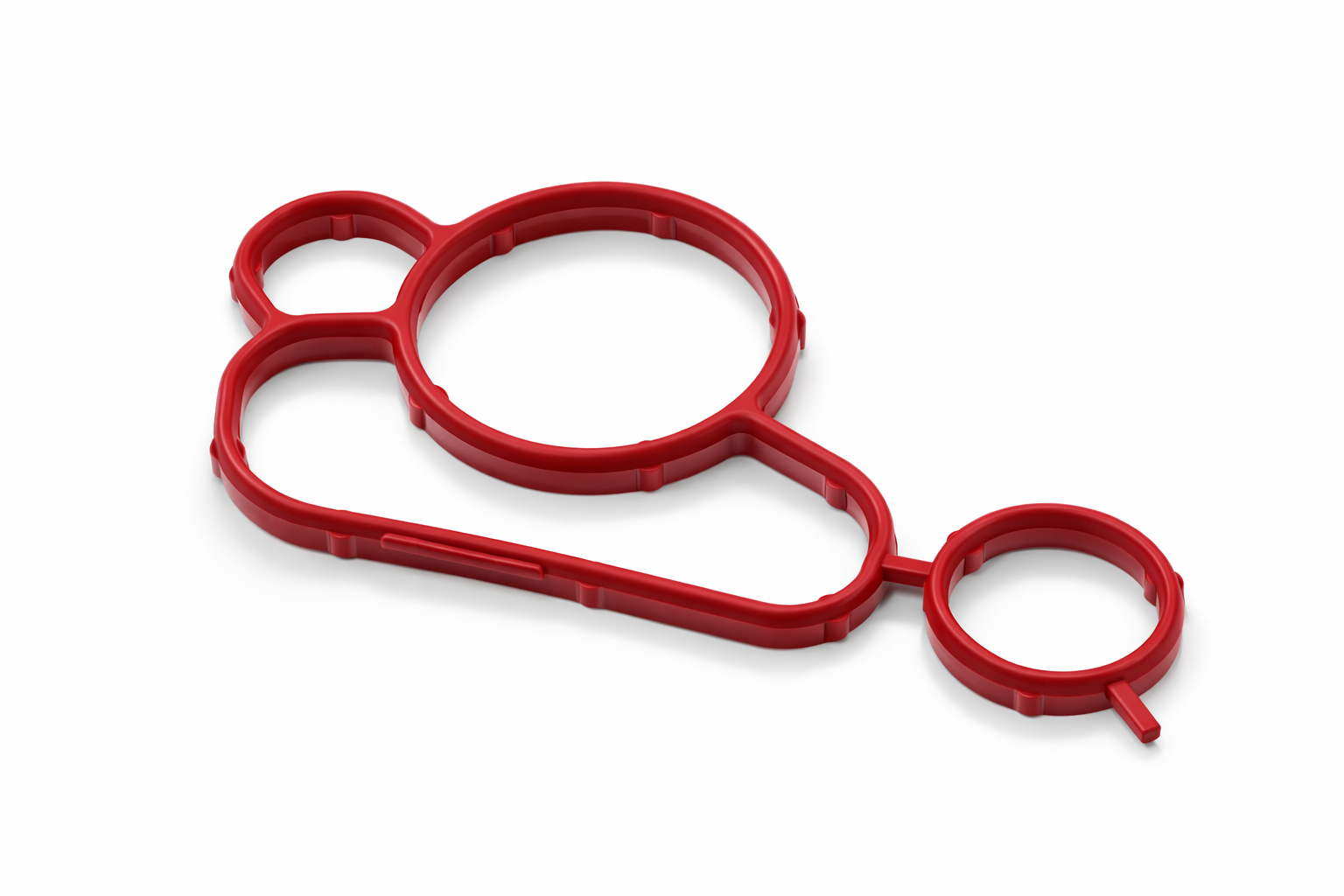

The engine oil cooler gasket serves as the sealing element between the oil cooler or oil filter housing assembly and the engine block, maintaining a pressure-tight barrier that prevents the high-pressure engine oil from escaping while also separating the oil and coolant passages in integrated cooler designs. This gasket is manufactured from HNBR (hydrogenated nitrile butadiene rubber) or similar advanced elastomers that offer superior resistance to the combined challenges of high operating temperatures, continuous oil immersion, and the pressure cycling that occurs during engine operation. The gasket must maintain its sealing properties across a wide temperature range, from cold start conditions where the oil is thick and viscous to fully warmed operation where the oil temperature can exceed 100 degrees Celsius and the oil pressure reaches its maximum. Over thousands of kilometres of service, the gasket material undergoes gradual degradation from thermal cycling, which causes the material to expand and contract repeatedly, eventually leading to fatigue and loss of sealing force. The chemical additives in modern engine oils can also slowly attack the gasket material, and the presence of any coolant leakage in the area can accelerate this degradation process. When the gasket fails, the consequences extend beyond the obvious external oil leak. In integrated oil cooler designs, the internal oil-to-coolant seal can fail independently of the external seal, allowing oil to enter the cooling system or coolant to enter the oil system without any visible external leakage. Coolant in the oil is particularly damaging because it forms sludge and acidic compounds that attack bearing surfaces, while oil in the coolant reduces its heat transfer capability and can cause the engine to overheat. Replacing the failed gasket with a quality Febi HNBR component restores the critical separation between the engine’s lubrication and cooling systems and eliminates the risk of costly cross-contamination damage.

Compatibility & Ordering Information

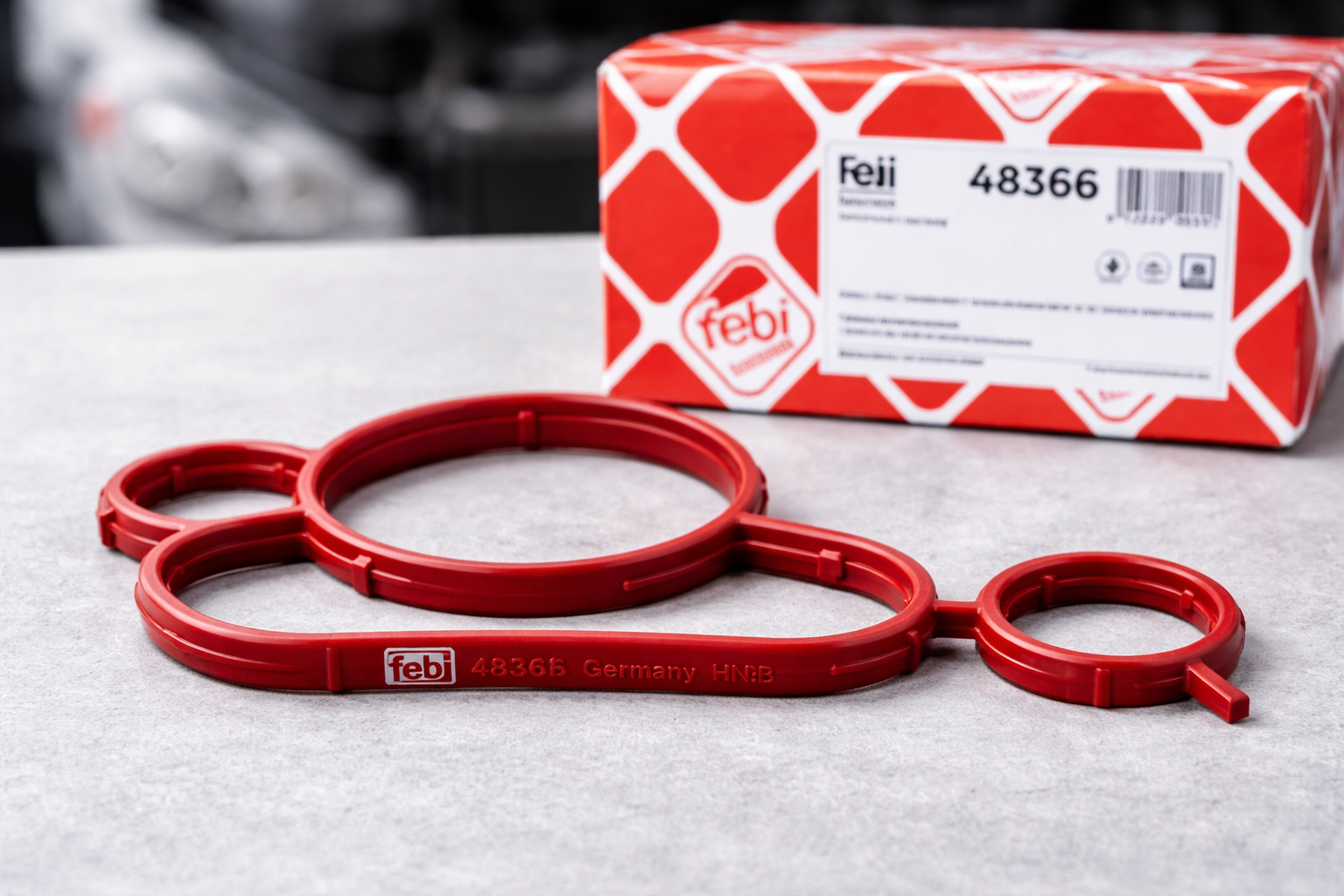

This engine oil cooler gasket is compatible with a wide range of Volkswagen Group engines across VW, Audi, Skoda, and Seat model ranges, particularly those with 1.4 litre to 2.0 litre TSI and TDI engine configurations. The gasket is commonly required on models like the VW Golf, Passat, and Tiguan, the Audi A3, A4, and Q5, the Skoda Octavia and Superb, and the Seat Leon and Altea. The Febi gasket is manufactured to OE specifications from premium HNBR material for long-lasting sealing performance. For assistance confirming that this gasket matches your specific engine code and vehicle configuration, our experienced team at Dub Source Limited is available to help. This genuine-quality gasket is in stock at our Kingston location on Mannings Hill Road for immediate pickup, and we offer delivery across Jamaica to Montego Bay, Ocho Rios, Negril, and all other parishes. Call 876-740-9332 or order online.
