Symptoms & Engine Signals

A leaking oil filter housing gasket typically presents as oil accumulation around the base of the oil filter housing, oil streaks running down the side of the engine block, or oil spots on the ground beneath the vehicle after it has been parked. In some cases, the oil leak may be more subtle, manifesting as a burning oil smell when the engine is hot, as leaked oil drips onto hot exhaust components and vaporises. You may also notice that the engine oil level drops more quickly than expected between services, requiring frequent top-ups to maintain the correct level. On engines with integrated oil cooler designs, a failed gasket can also allow oil to enter the coolant system or coolant to enter the oil system, resulting in coolant contamination that appears as a milky, emulsified substance in the coolant expansion tank or on the oil dipstick. This cross-contamination is a serious condition that requires immediate attention, as coolant in the oil severely reduces its lubricating properties and can cause rapid bearing failure, while oil in the coolant reduces its heat transfer efficiency and can lead to engine overheating. The oil filter housing gasket is a relatively inexpensive component, but its failure can lead to expensive consequences if not addressed promptly.

Why Your Car Might Be Struggling

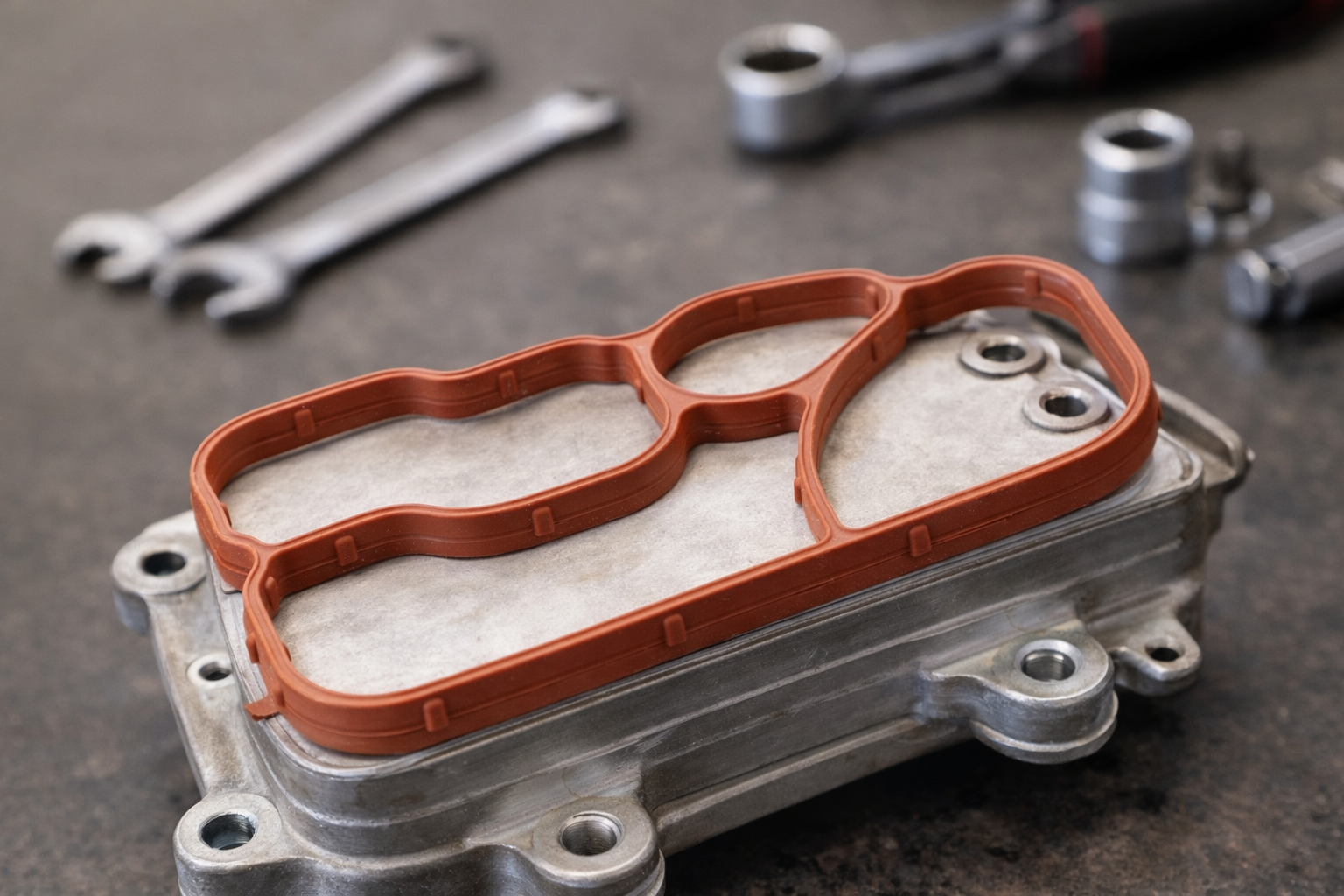

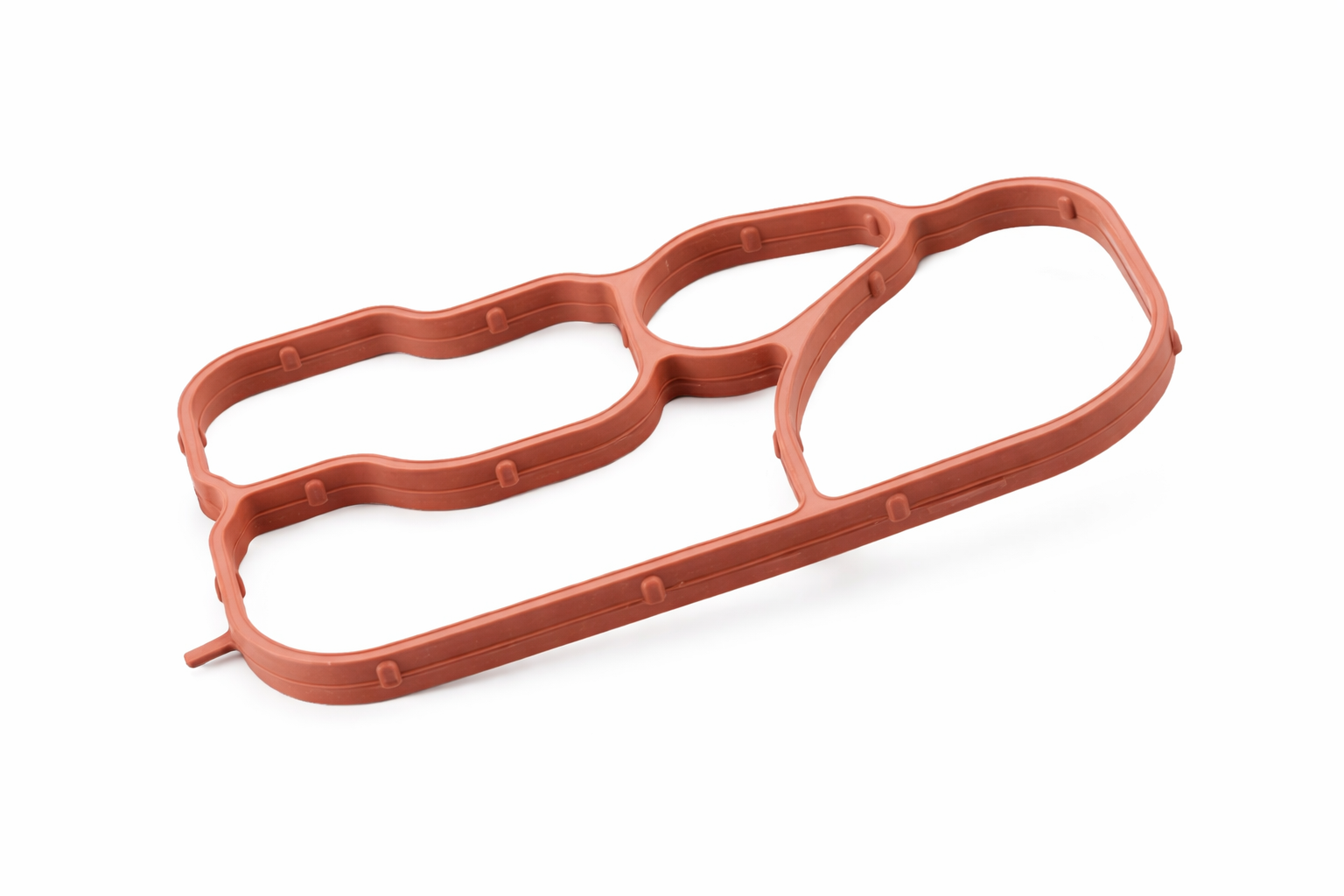

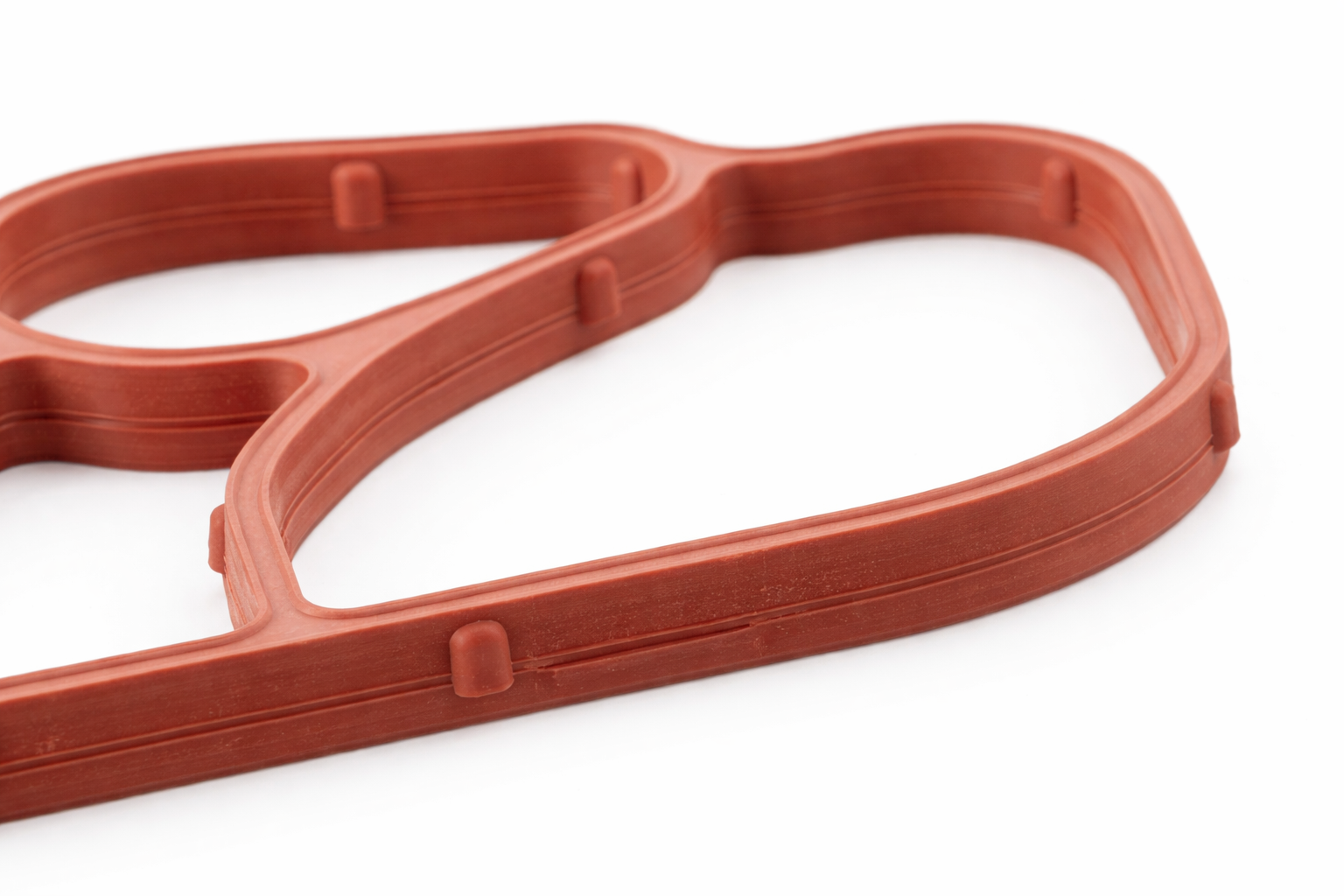

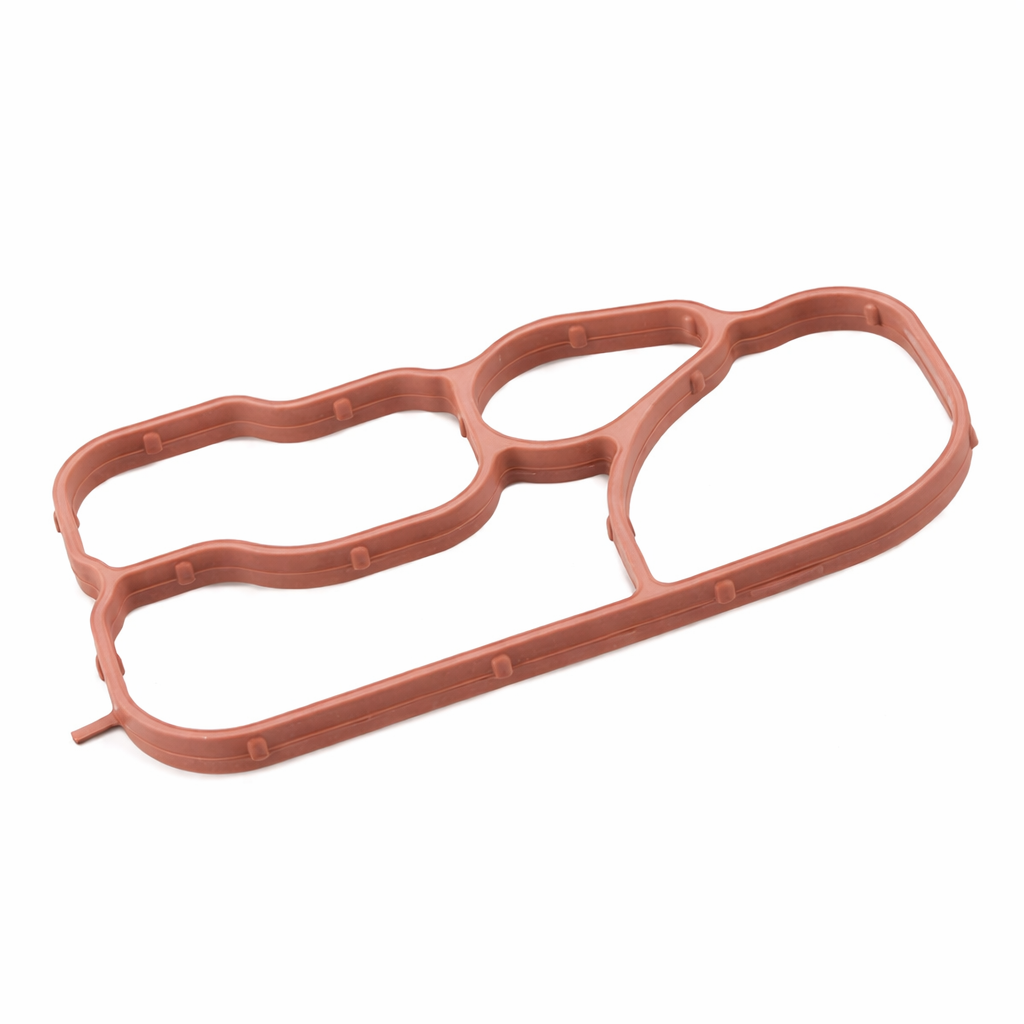

The oil filter housing gasket, also known as the oil cooler gasket or oil filter adapter seal, is a precision-engineered sealing component that creates a pressure-tight barrier between the oil filter housing assembly and the engine block. This gasket must seal against the full pressure of the engine’s lubrication system, which can exceed several bar depending on engine speed and oil temperature, while also withstanding the high temperatures that develop in the oil filter housing area during operation. The gasket is typically manufactured from HNBR (hydrogenated nitrile butadiene rubber) or similar advanced elastomers that offer superior resistance to oil degradation and heat ageing compared to standard rubber compounds. Despite these advanced materials, the gasket is still subject to gradual deterioration over time as it undergoes repeated thermal cycling from engine warm-up and cool-down, exposure to the chemical additives in engine oil, and the mechanical vibration inherent in engine operation. Over thousands of kilometres, the gasket material gradually hardens and loses its ability to maintain the compressive sealing force required to prevent oil leakage. Once a leak path develops, the pressure in the lubrication system forces oil past the gasket, creating an external leak that progressively worsens as more oil escapes and further degrades the sealing surfaces. In integrated oil cooler housings, the gasket also separates internal oil and coolant passages, and a failure at this location can lead to cross-contamination that compromises both the lubrication and cooling systems simultaneously. Replacing the worn gasket with a quality Febi HNBR component restores the integrity of the oil filter housing seal and ensures your engine continues to receive reliable lubrication without the risk of contamination.

Compatibility & Ordering Information

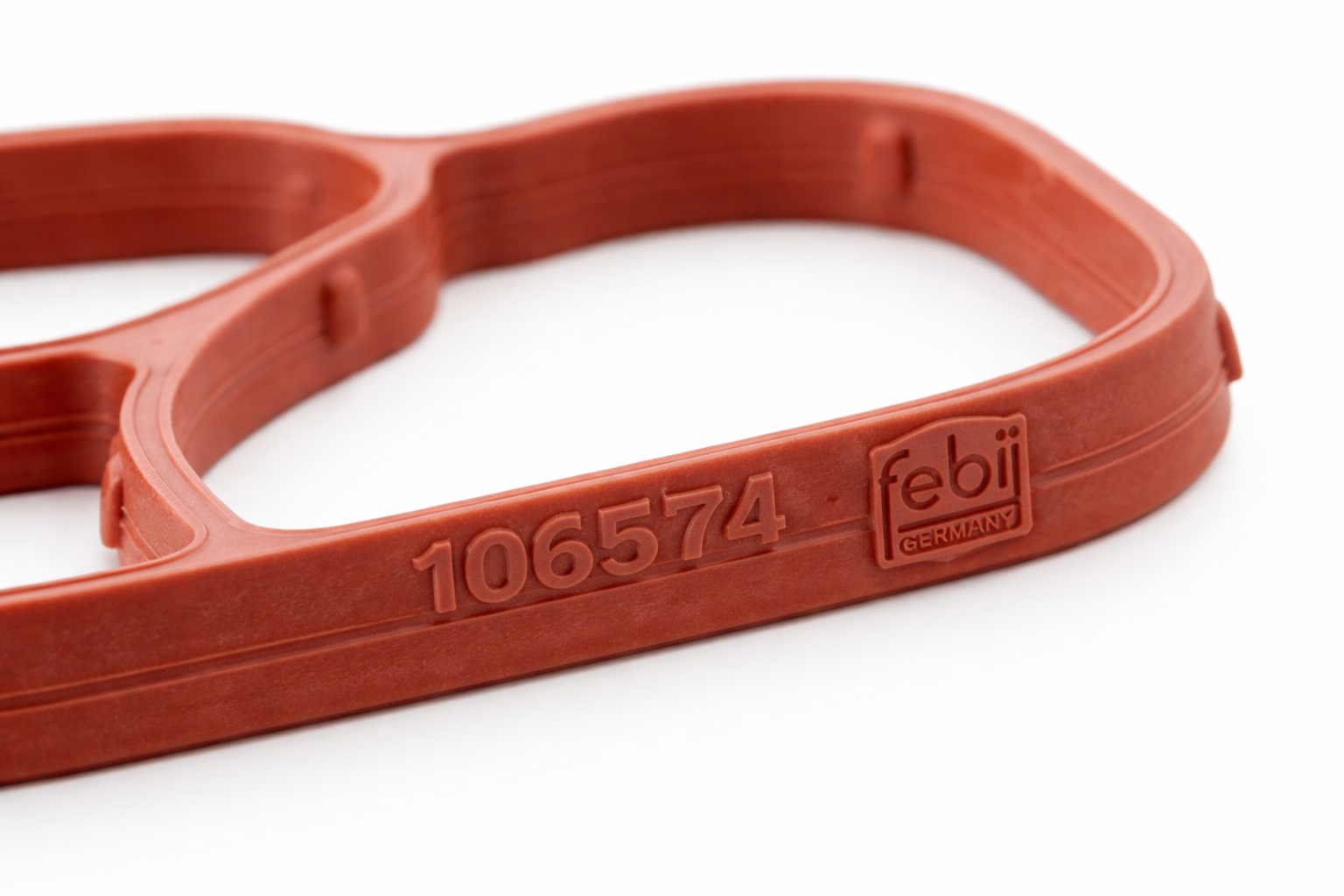

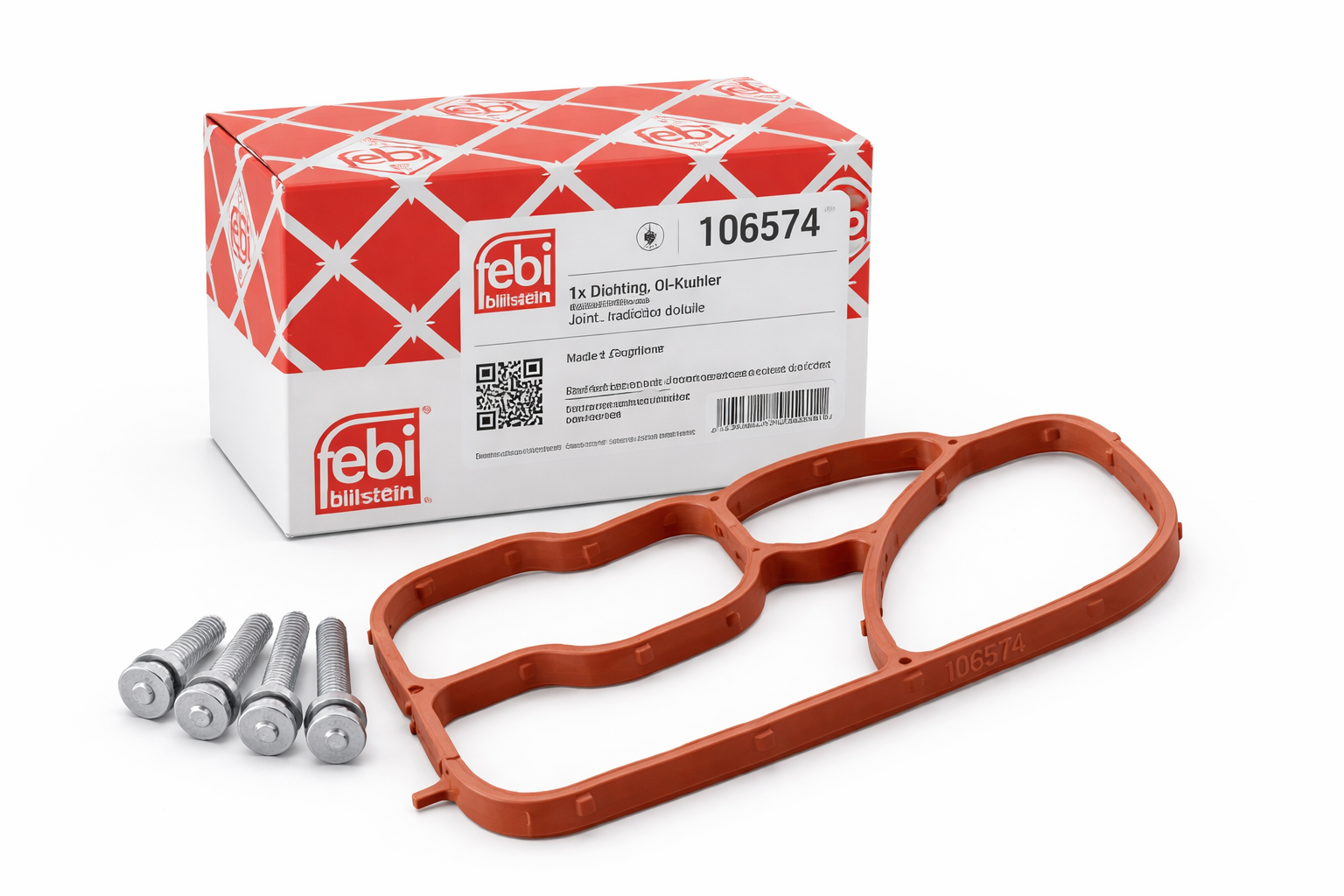

This oil filter housing gasket fits selected Volkswagen Group engines across VW, Audi, Skoda, and Seat model ranges, commonly found on 1.4 litre, 1.8 litre, and 2.0 litre TSI and TDI engine families. Popular applications include the VW Golf, Passat, and Tiguan, the Audi A3, A4, and Q5, the Skoda Octavia and Superb, and the Seat Leon and Altea. The Febi gasket is manufactured from high-quality HNBR material to OE specifications, ensuring correct fitment and long service life. For assistance confirming that this gasket matches your specific engine code, our knowledgeable team at Dub Source Limited is available to help. This genuine-quality replacement gasket is in stock at our Kingston location on Mannings Hill Road for immediate pickup, and we offer delivery services across all Jamaican parishes, including Montego Bay, Ocho Rios, and Negril. Call 876-740-9332 or order online to stop that oil leak at its source.
