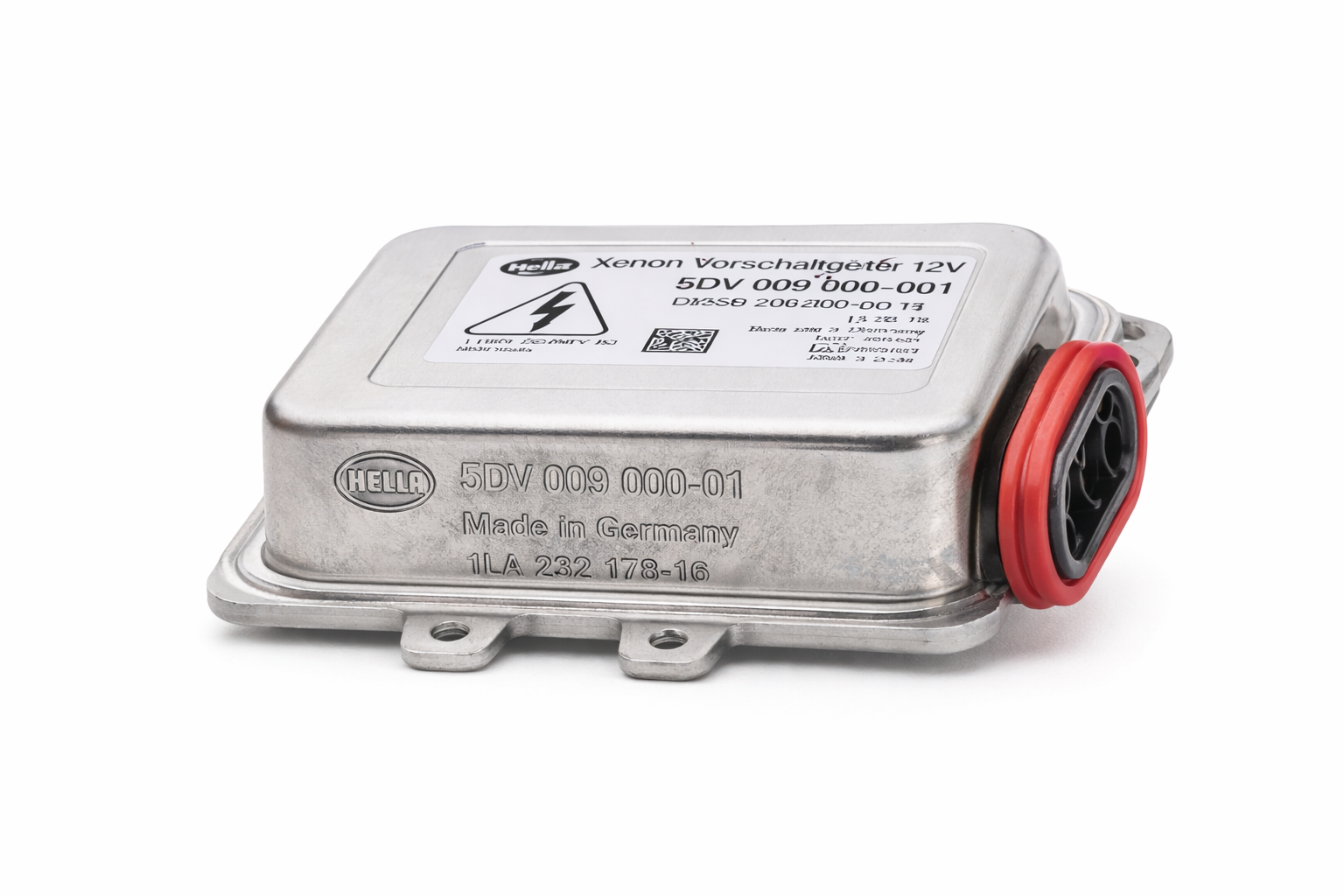

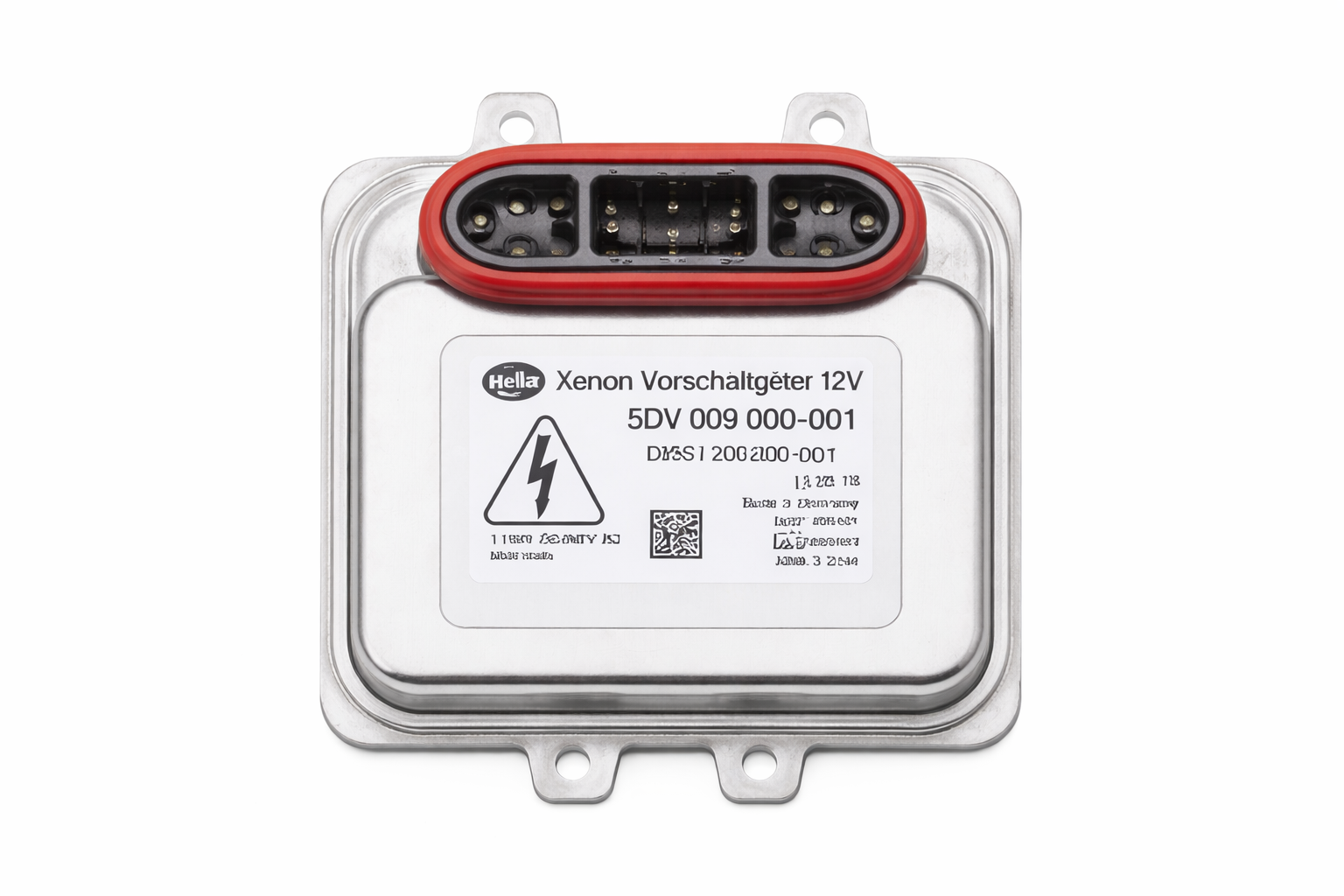

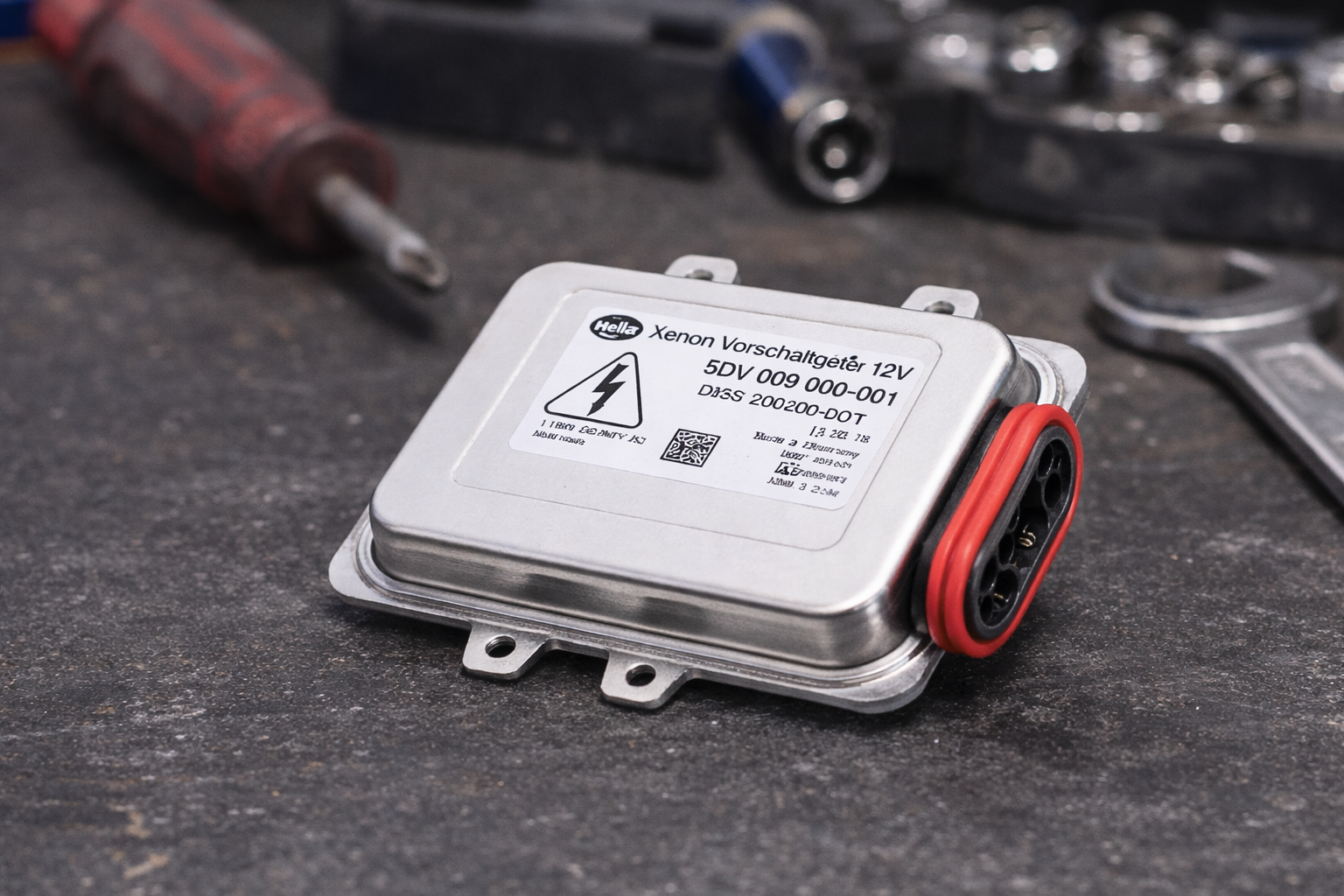

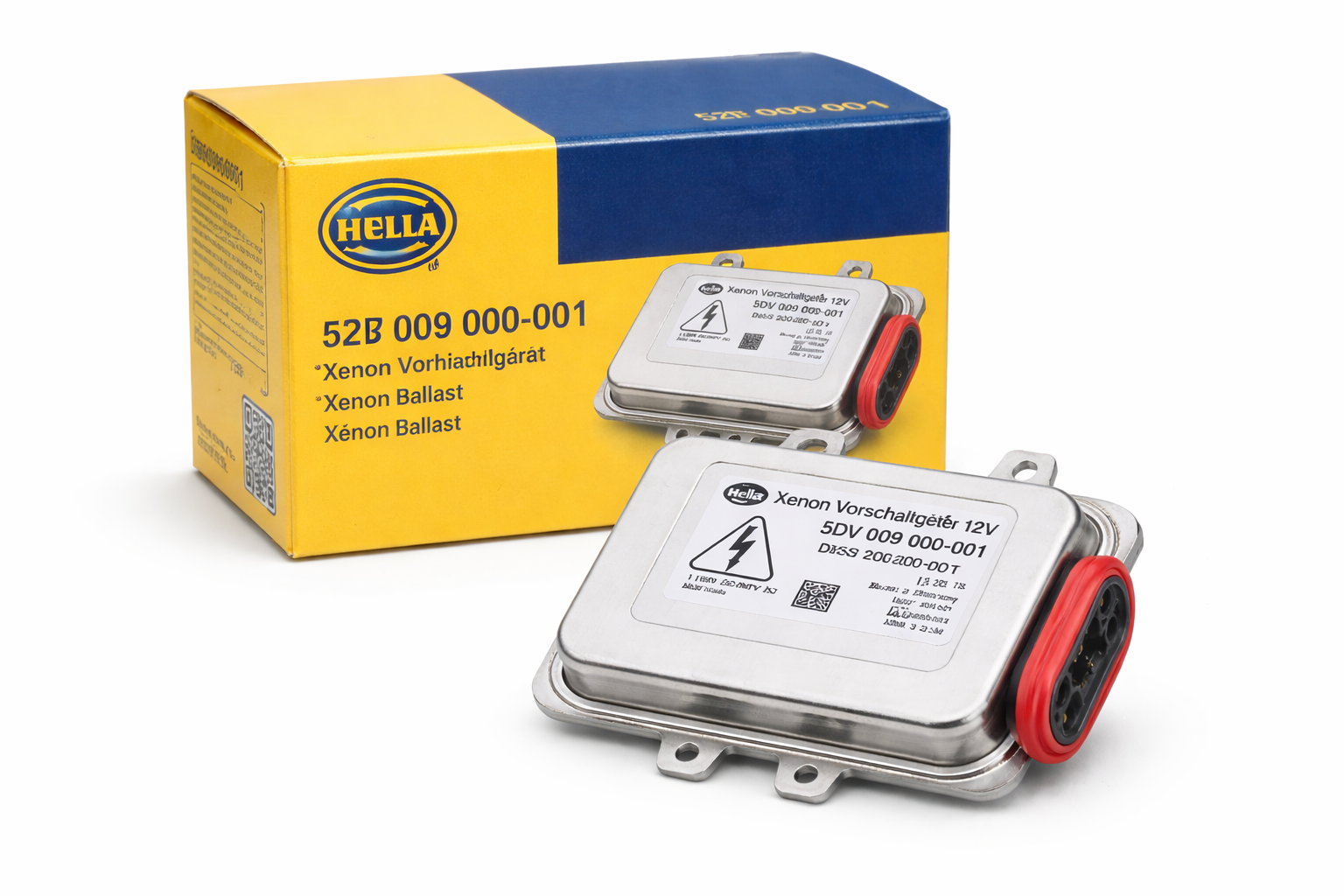

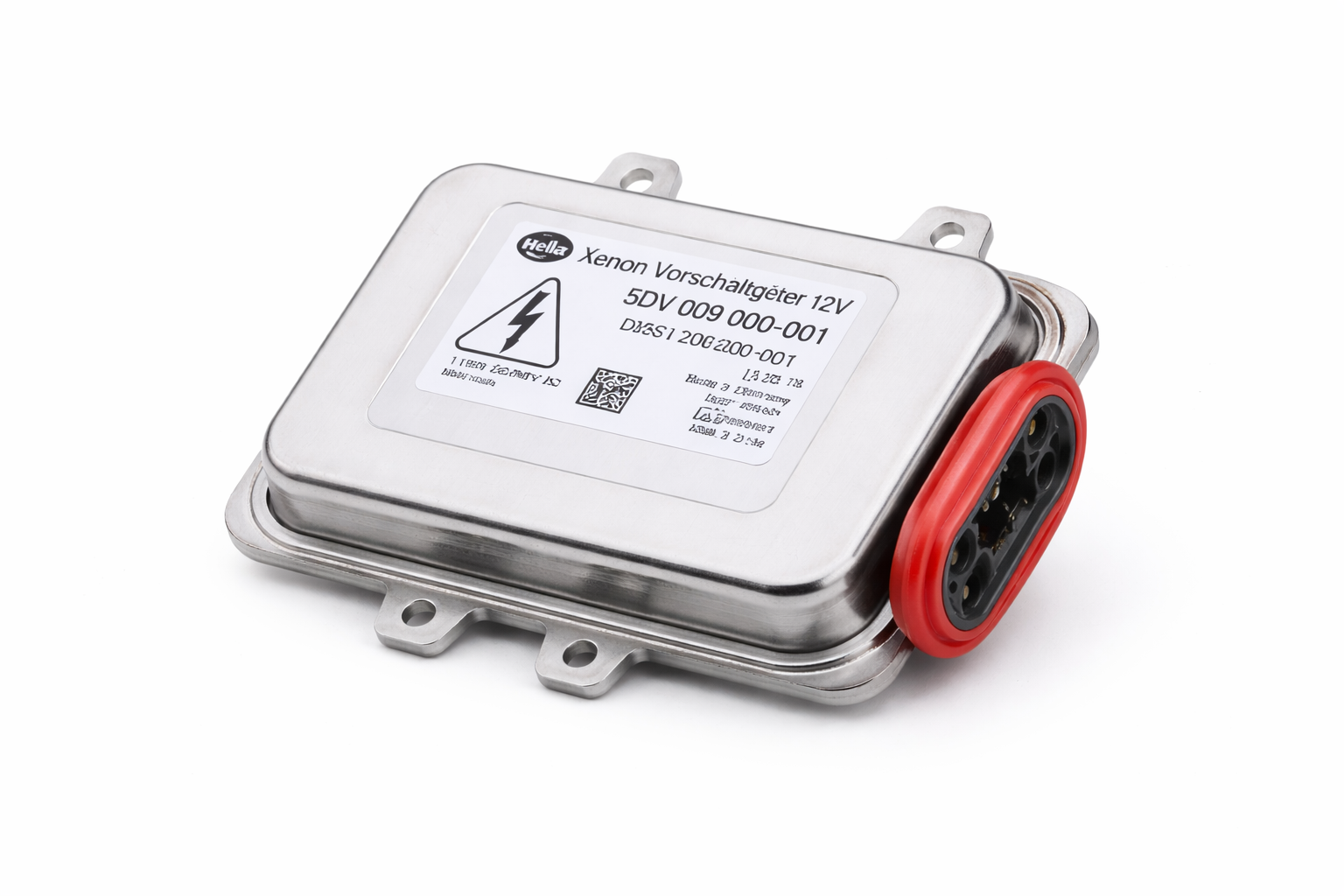

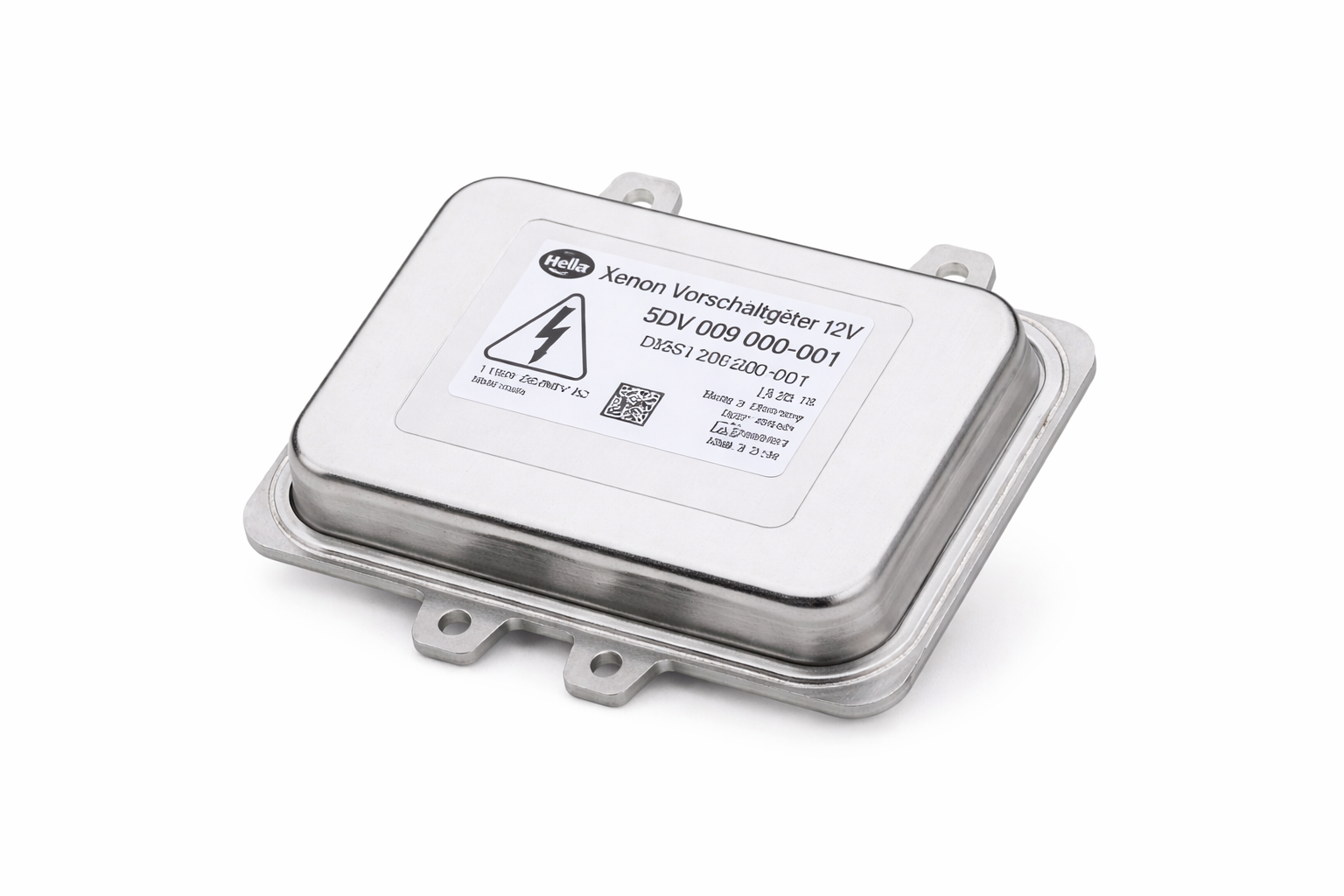

The Hella 5DV009000-001 is a 5th-generation xenon ballast control unit designed for high-intensity discharge headlight systems running D1S or D1R bulbs on selected Volkswagen and Audi vehicles. Available at Dub Source JA, Kingston’s dedicated VW and Audi parts specialist in Jamaica.

WHAT IT IS

A xenon ballast is the electronic control unit that makes an HID headlight system work. Unlike a halogen bulb which simply passes current through a filament, a xenon HID bulb contains pressurised gas that must be ignited with a precisely controlled high-voltage pulse before it can produce light. The ballast performs two distinct functions in sequence. At the moment the headlights are switched on it generates the initial high-voltage ignition pulse needed to start the arc inside the bulb. Once the arc is established and the bulb reaches operating temperature, the ballast switches to its second role and regulates a steady, controlled current to keep the light burning at a consistent output level. The Hella 5DV009000-001 is a 5th-generation unit, meaning it incorporates the refined electronics of a later production generation and is built to the tighter tolerances that modern Audi and Volkswagen xenon systems require.

WHY IT MATTERS

The ballast is the component the entire HID headlight system depends on. A failing ballast produces symptoms that are immediately noticeable, including a headlight that flickers on ignition and then cuts out, a headlight that takes longer than normal to reach full brightness, one headlight that is noticeably dimmer or a different colour temperature than the other, or a headlight that fails to ignite at all. On Volkswagen and Audi vehicles fitted with automatic headlight levelling and adaptive lighting systems, a failed ballast can also trigger warning lights on the dashboard as the lighting management system detects a fault in the HID circuit. Xenon headlights produce significantly more light output than halogen systems, which means a failed xenon headlight on an unlit Jamaican road at night is a more significant visibility loss than a failed halogen bulb would be.

COMPATIBILITY

The Hella 5DV009000-001 ballast is designed for selected Volkswagen and Audi vehicles fitted with D1S or D1R xenon HID headlight systems. Ballast fitment is specific to the headlight assembly generation and vehicle model, and not all xenon-equipped VAG vehicles use the same ballast unit. Use our VIN Part Matching service to confirm this is the correct ballast for your headlight system before ordering, or browse our full Electrical parts range for related lighting and control units.

AVAILABILITY

In stock at 70A Mannings Hill Road, Kingston. We deliver island-wide across Jamaica. Call 876-740-9332 or order at dubsourceja.com.

Hella Xenon Ballast 5DV009000-001 available at your Volkswagen and Audi parts specialist in Kingston, Jamaica.
